Camera & Perspective Fundamentals
The Paradox​
Everything you see is a lie, but it's a lie that tells the truth.
Maybe that's a bit to dramatic. A photo isn't a lie, as a lie implies intent to deceive. But a photo is a projection. It is a mathematical reduction of 3D space into 2D space. It is truthful about the X and Y axis, but silent about Z. Meaning that when you look at a photograph, you are not seeing three dimensions. Equally, when you navigate Blender's viewport, you are not actually moving through three dimensions. Both are flat planes (screens, monitors, prints) displaying a carefully "constructed" illusion of depth.
This is a paradox at the heart of this: We work exclusively in 2D, yet our task is to reconstruct spatial truth in 3D. We are cartographers of evidence, and our tools are cameras, perspective, and geometry. We are not just looking at pictures; we are trying to reverse-engineer the math that created them.
The photograph compresses reality into pixels. Blender's viewport projects a 3D scene onto your 2D screen. Both follow the same underlying rules — the rules of perspective — and by understanding these rules, we can reverse-engineer one from the other.
This page will show you to see not just what is in an image, but where it was captured from, how the camera was positioned, and why the resulting image looks the way it does.
Position, Perspective, Perception​
Before exploring cameras and focal lengths, it's good to understand a hierarchy that governs visual investigation: Your position determines your perspective, and your perspective determines your perception.
Position: Where You Stand​
Your physical location in space is absolute. If you stand on a specific street corner, you occupy a unique set of coordinates (X,Y,Z). This is an objective fact.
In a 3D software like Blender, the camera is an object just like any other. It exists at a precise point in the virtual world. When we "solve" a camera, we are not guessing; we are attempting to recover these exact coordinates.
Perspective: What You Can See​
From that fixed position, you have a specific geometric view of the world. The angle at which light enters the lens (or your eye) creates strict relationships:
- Occlusion: Objects in front block objects behind.
- Convergence: Parallel lines appear to meet at vanishing points.
- Scale: Distant objects appear smaller than near ones.
This is Perspective: the mathematical projection of 3D space onto a 2D plane (the camera sensor or retina). It also defines limits of wat is visible, and what is hidden.

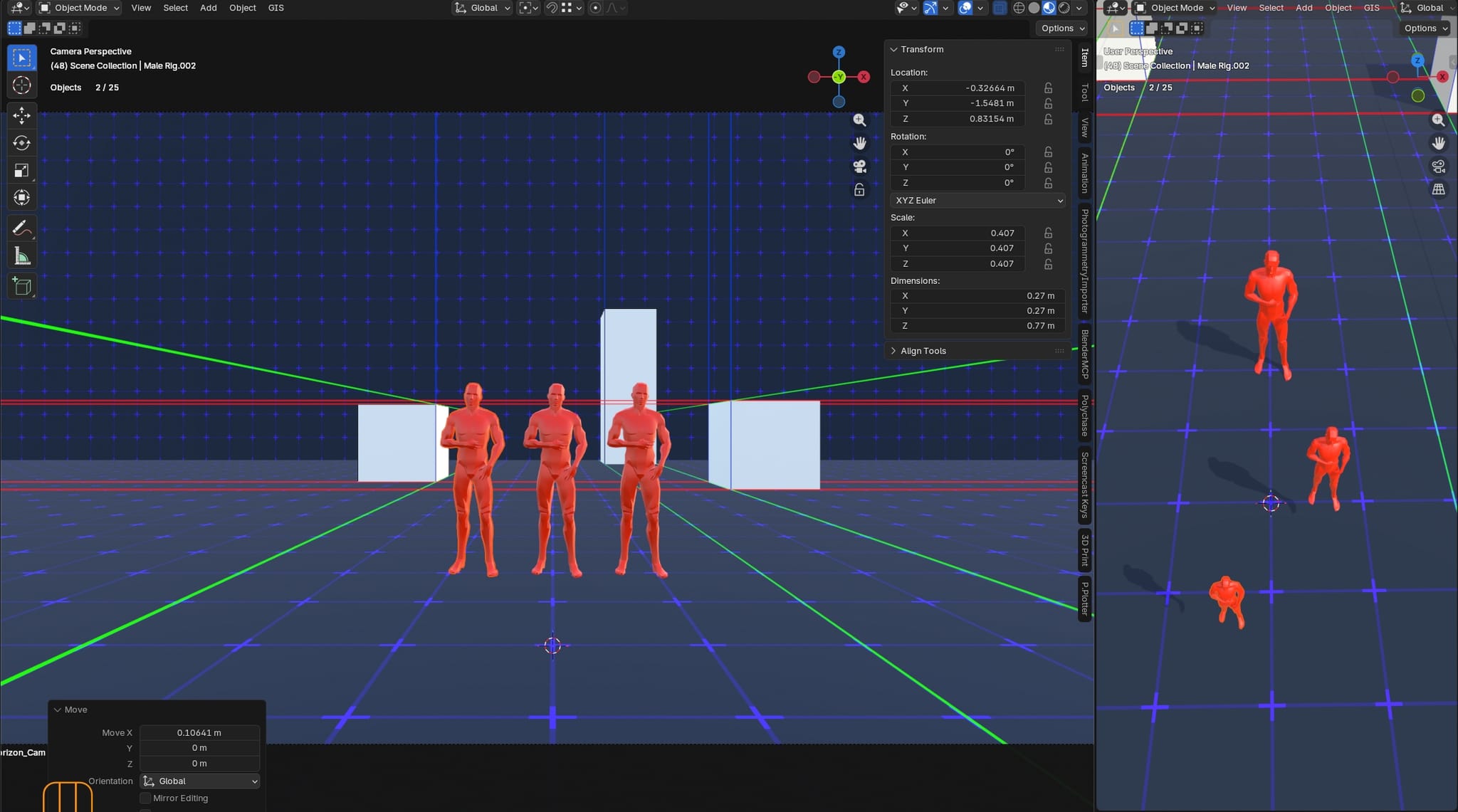

Perception: What You Think You See​
Our brains constantly interpret 2D images and construct 3D understanding, but this process is fallible. The following classic optical illusions demonstrate how perception can be systematically fooled:
-
Muller-Lyer Illusion - Two lines of equal length appear different depending on the direction of arrow-like endings. Shows how context influences perceived size.
-
Ames Room - A distorted room that appears normal from one viewpoint, making people seem to change size as they move. Demonstrates how we assume rectangular geometry when depth cues are ambiguous.
-
Hering Illusion - Two straight parallel lines appear to bow outward when overlaid on radiating lines. Reveals how surrounding context distorts our perception of straight lines.
-
Shepard Tables - Two identical parallelograms appear to be completely different shapes when drawn as table tops. Shows how 3D interpretation overrides 2D measurement.
-
Sander Illusion - Diagonal lines of equal length appear different when placed in different positions within a parallelogram. Context affects perceived length.
-
Vertical-Horizontal Illusion - A vertical line appears longer than a horizontal line of the same length. Our perception systematically misjudges orientation.
These illusions aren't quirks — they're systematic errors in how our visual system reconstructs 3D space from 2D input. This is why we rely on geometric measurement rather than visual intuition when analyzing imagery. We use tools to anchor ourselves in Perspective so we can mathematically calculate Position.
By establishing where a camera was, we remove the ambiguity of what the image seems to show, and reveal what it physically captured. We are creating a testable hypothesis of spatial relationships.
From Flat Images to Spatial Truths​
Here is the key point to understand, and a summary so far:
Everything you work with is 2D. Everything you are trying to represent is 3D. The bridge between them is geometry.
- A photograph is a 2D plane that encodes 3D information through perspective.
- Blender's viewport is a 2D plane that simulates 3D space through projection.
- Your screen is a 2D plane displaying both.
We do not work in 3D; we work with the illusion of 3D on 2D surfaces. Our task is to make that representation as accurate, as measurable, and as falsifiable as possible.
When you look at a photograph or video footage, you are looking at a 2D compression of a 3D world. This compression destroys data.
- Depth is lost: We know X and Y, but Z is flattened.
- Scale is distorted: A small object close up looks identical to a large object far away.
- Relationships are flattened: Occlusion hides connections between objects.
The goal is to decompress the 2D pixel data back into 3D spatial data. To do this, we need to understand the mechanism that compressed it in the first place: The Camera.

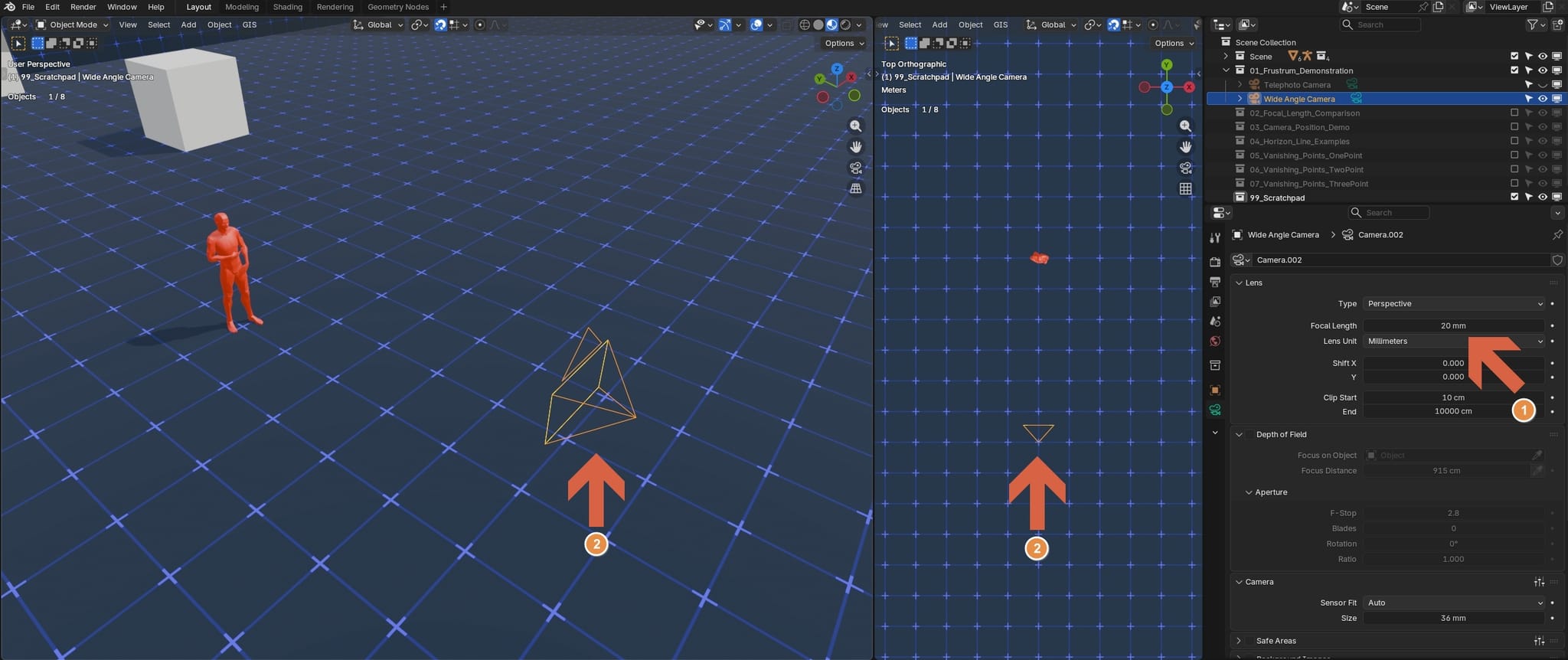

The Camera Frustum​
To understand how a camera sees, it helps to stop thinking about the frame (or "rectangle") and start thinking about the "pyramid."
Imagine a four sided cone projecting out from the camera lens into the world. The tip of the pyramid is the sensor (or your eye). Everything inside this pyramid is captured/recorded; everything outside is ignored. This pyramid is called the Camera Frustum.

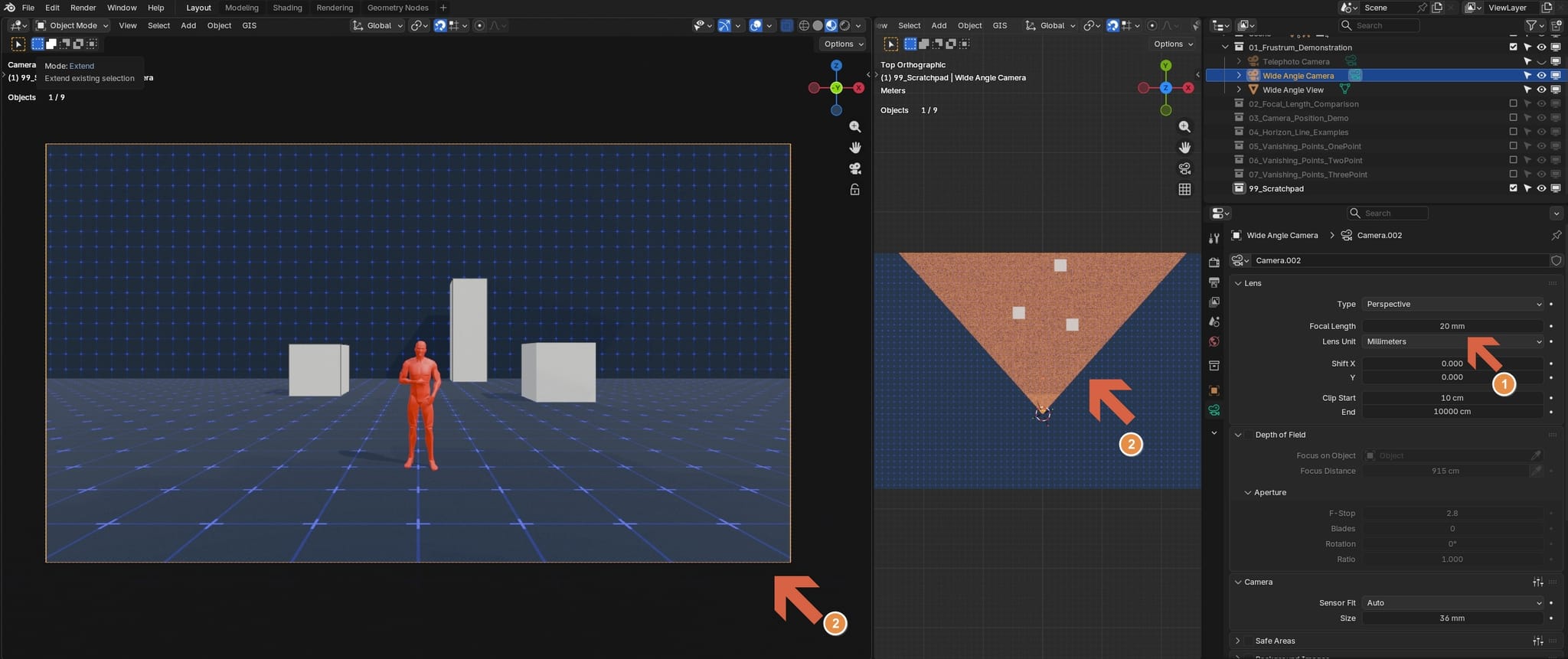

The shape of this pyramid is determined by the Focal Length:
- Wide Angle (e.g., 16mm): Captures a wide cone. Shows more of the scene.

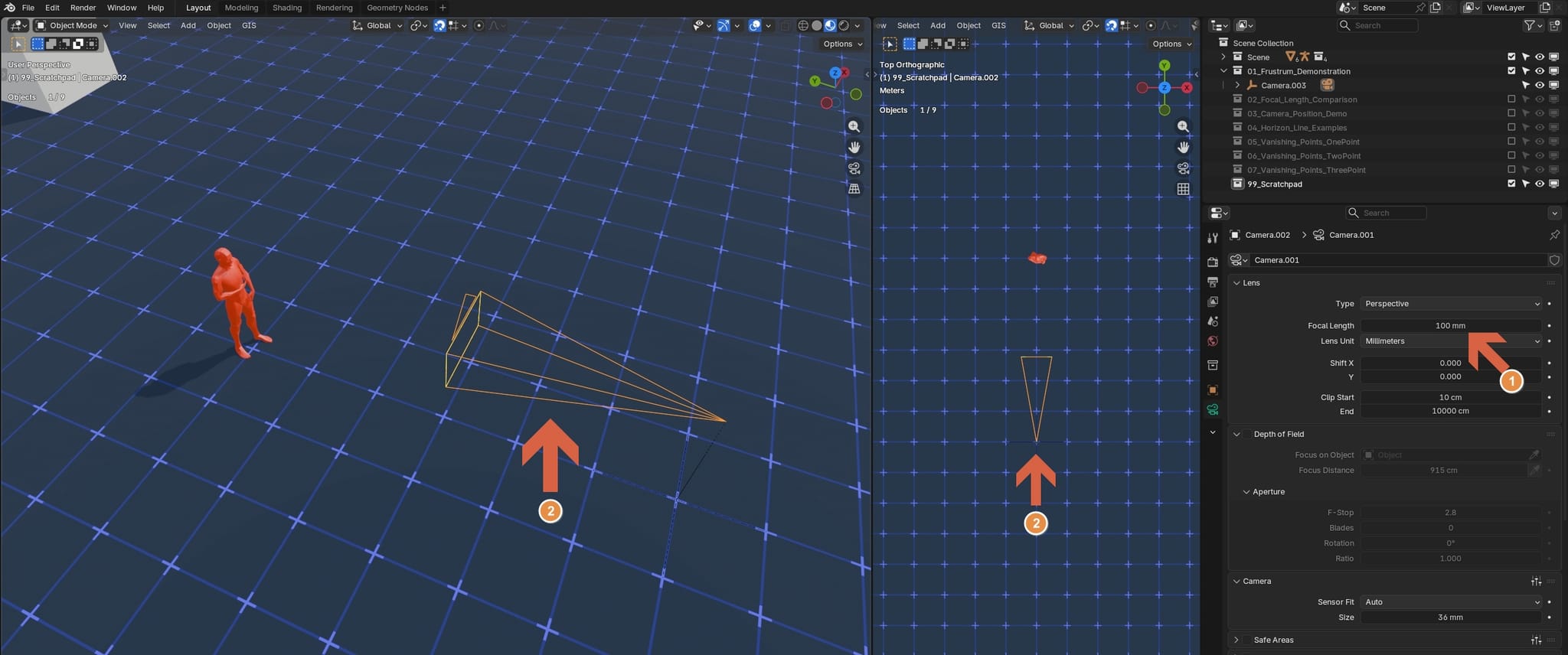

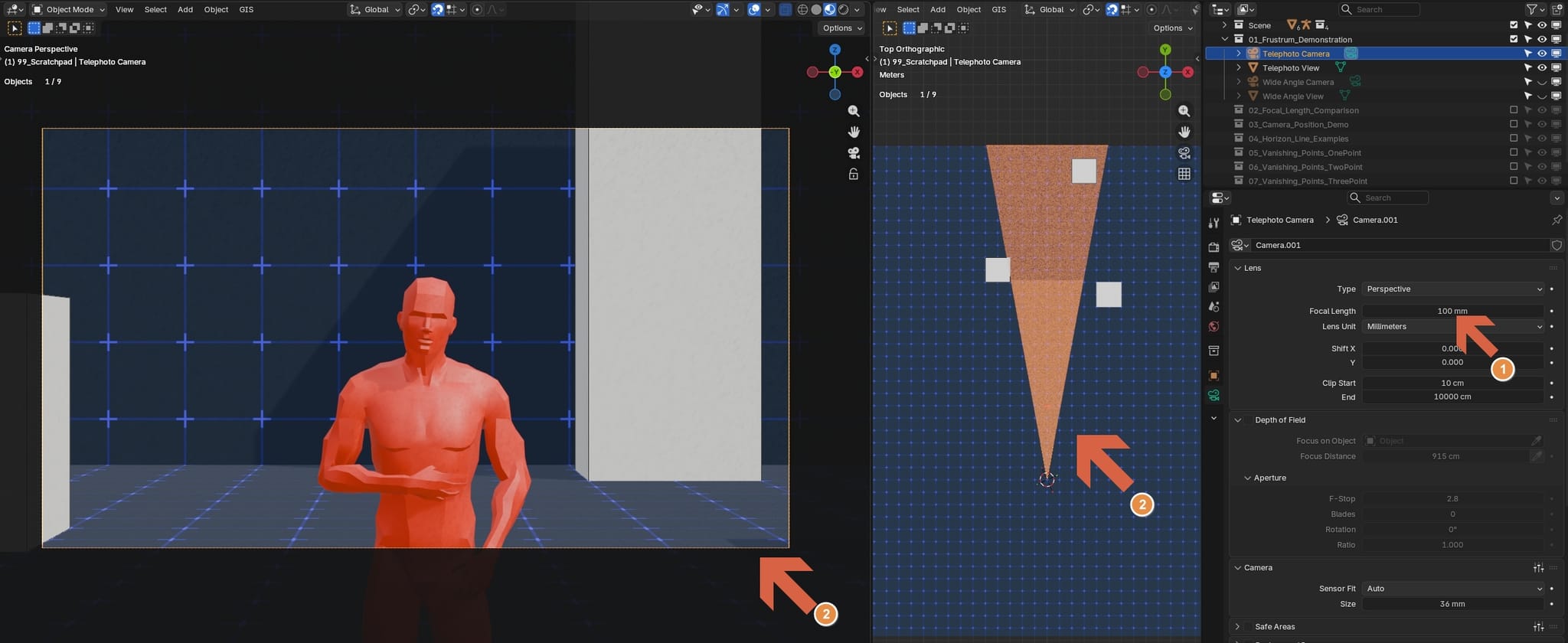

- Telephoto (e.g., 85mm+): Captures a narrow cone. Shows less of the scene, a magnified crop.
A Key Distinction: Focal Length vs. Position​

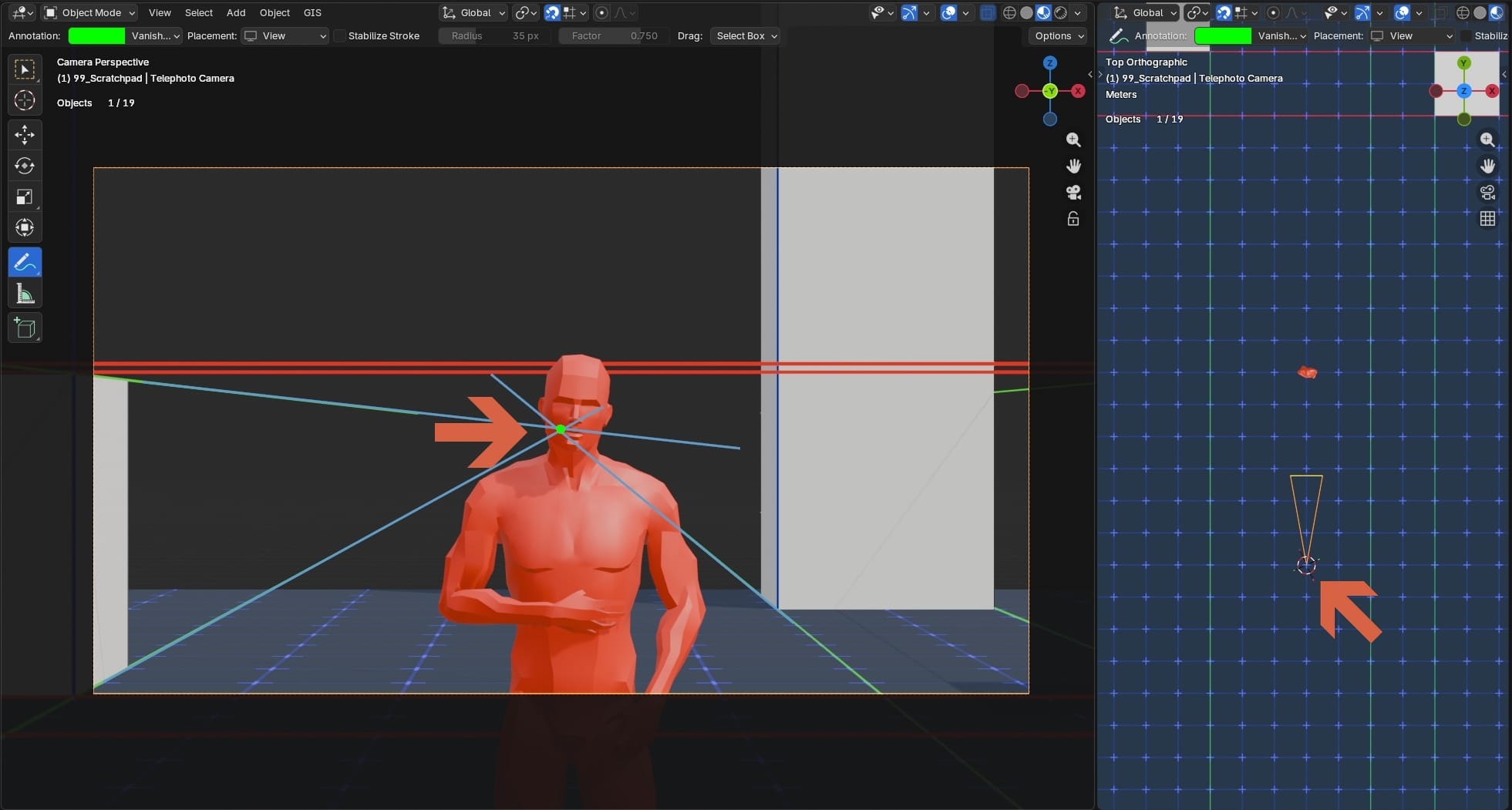

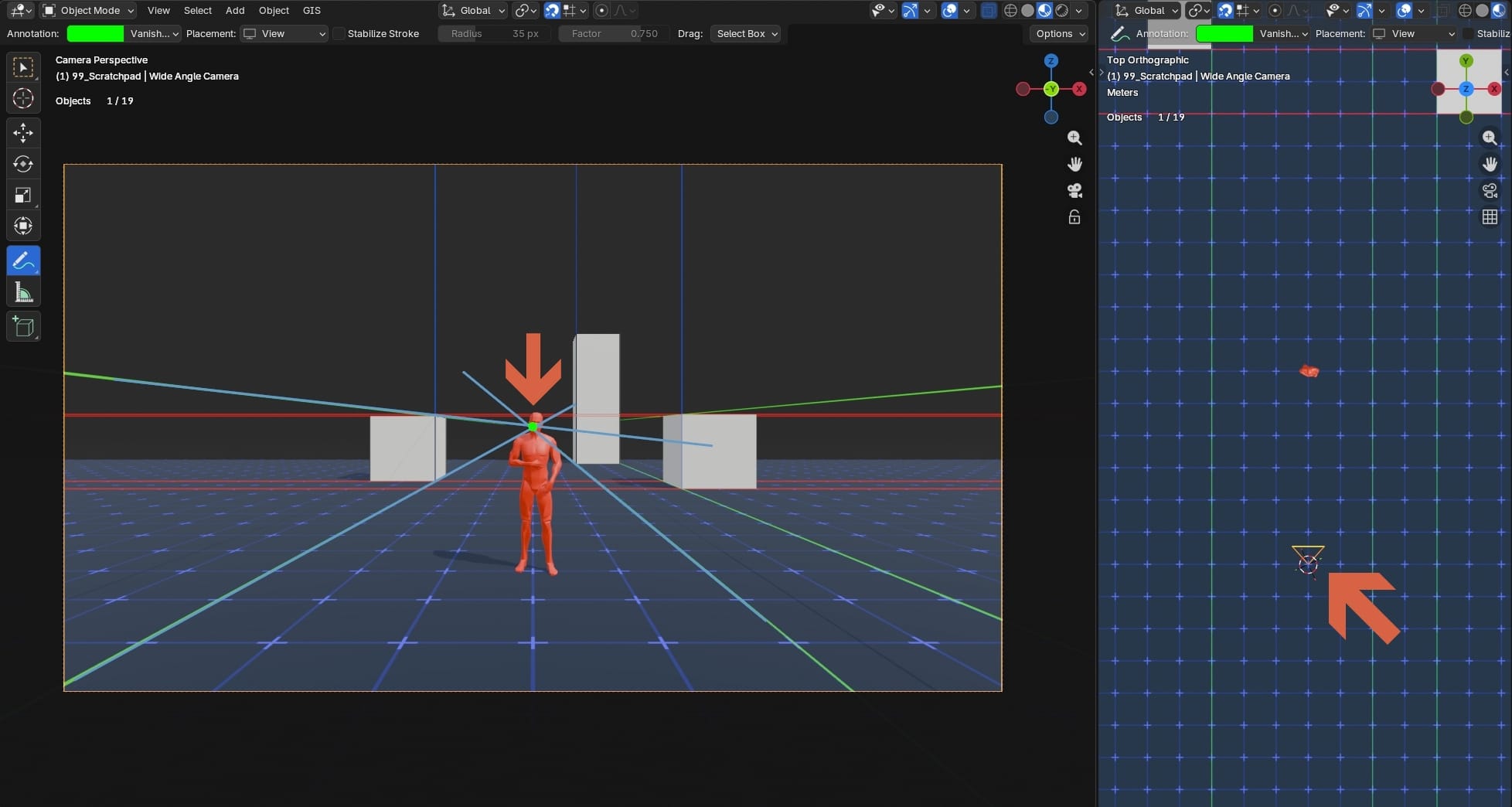

Note that: Focal length does NOT change perspective geometry. Only camera position changes perspective.
If you take two photographs from the exact same position, one with a 16mm wide-angle lens and one with a 200mm telephoto, the vanishing points, horizon line, and spatial relationships will be identical. The telephoto image is simply a magnified crop of what the wide-angle captured.
What changes is the Field of View: how much of the perspective geometry you can see in the frame.
Why this matters: When performing camera matching, you cannot compensate for incorrect camera position by adjusting focal length. The geometry is determined by where the camera was, not by the lens attached to it. Focal length only affects how much of that geometry fills the frame.
Reading Perspective: The Geometry of Vision​
The Three Axes of Rotation​
Before analyzing the horizon, let's define the three ways a camera can rotate. In 3D software (and aviation), these are called Pitch, Yaw, and Roll.
Pitch (Tilt): Looking Up or Down​
- Movement: Rotating the camera up or down (like nodding "yes")
- Visual Effect: Moves the horizon line up or down in the frame
- Geometric Impact: Changes which vanishing points are visible; vertical lines begin to converge if pitch is extreme
Yaw (Pan): Looking Left or Right​
- Movement: Rotating the camera left or right (like shaking your head "no")
- Visual Effect: Slides the scenery horizontally; vanishing points shift left or right along the horizon
- Geometric Impact: In two-point perspective, determines the angle at which you see corners; both vanishing points remain on the horizon line
Roll (Bank): Tilting Sideways​
- Movement: Rotating the camera around the lens axis (like tilting your head to your shoulder)
- Visual Effect: Tilts the entire image; the horizon line becomes diagonal (often called a "Dutch Angle")
- Geometric Impact: The horizon line is no longer horizontal in frame; vanishing points move off the horizon in screen space (but they're still on the true horizon plane in 3D space)
Understanding these three movements unlocks the geometry of the Horizon Line.

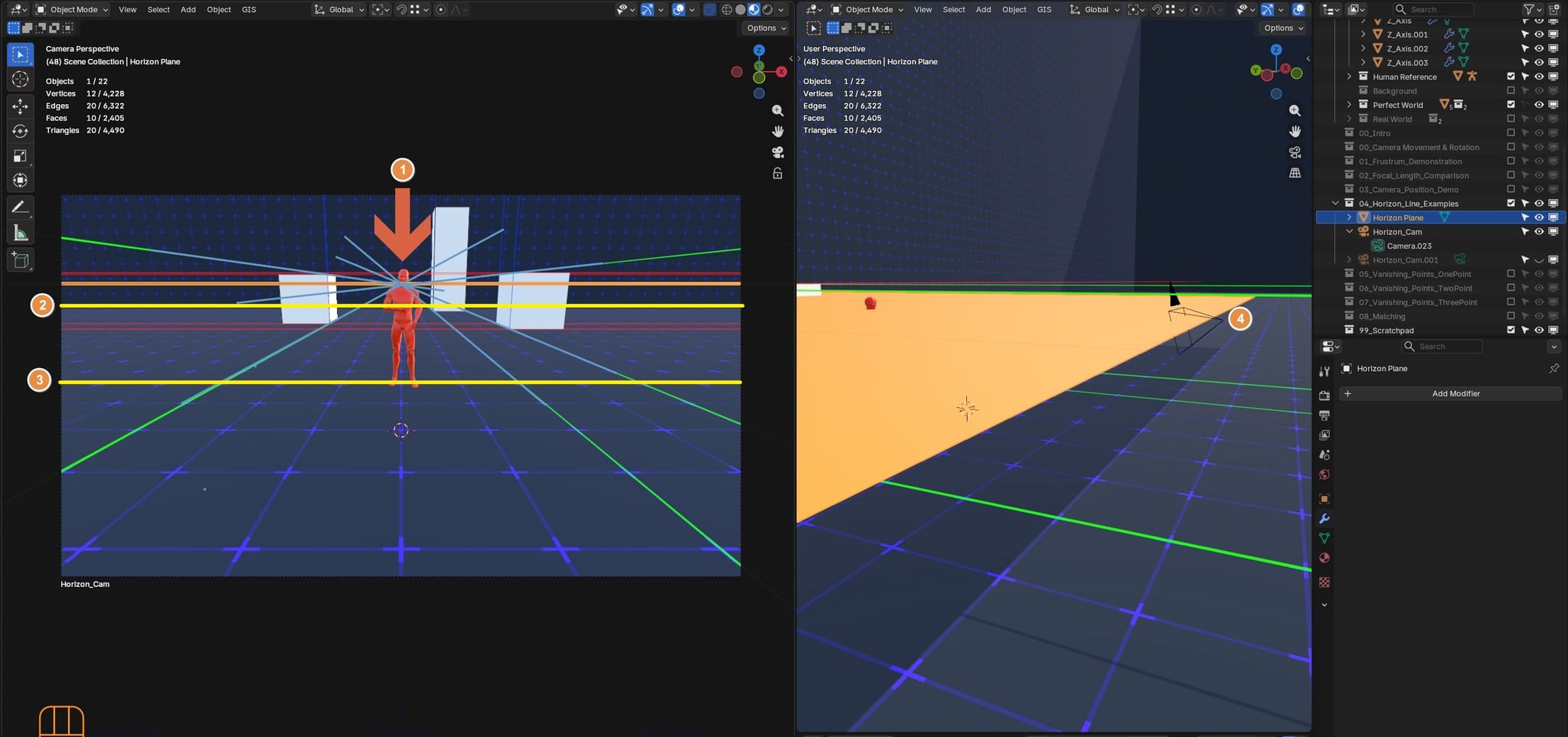

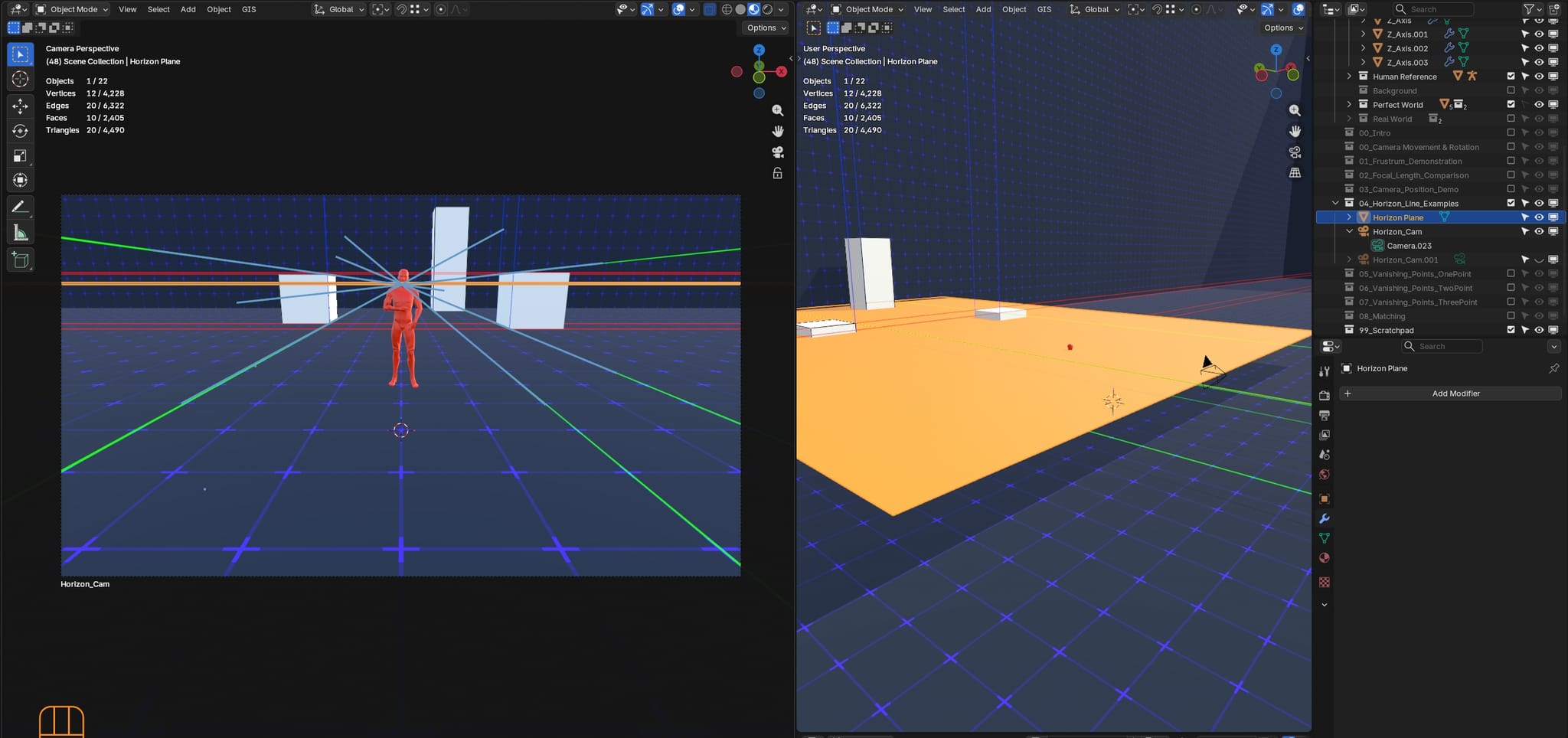

The Horizon Line: Reading Camera Height and Pitch​
The Horizon Line is not just the line where the sky meets the ground. Nor is it the line that runs horizontally across your image. It is a geometric construct that reveals key information about the camera's vertical position and tilt.
Intuitive Definition: The Horizon Line represents your eye level, like an infinite horizontal plane extending from the camera's position.
Technical Definition: The Horizon Line is the projection onto the image plane of an infinite horizontal plane passing through the camera's position. When the camera has zero pitch (optical axis parallel to ground), the horizon appears as a horizontal line through the frame. There is a distinction to be made between
- The geometric horizon (eye level plane)
- The visual horizon (where objects meet sky/background)
- The frame horizon (horizontal centerline)
What the geometric Horizon Line can Tell You​
Camera Height (Vertical Position)
The horizon line reveals what elevation the camera occupies:
- Horizon cuts through an object → Camera is at that object's height
- Example: Horizon line through middle of door = camera at ~1m height (doorknob level)
- Can see top of objects → Camera is above them
- Example: Looking down at table tops = camera above table height
- Can see undersides of objects → Camera is below them
- Example: Seeing underside of a bridge = camera below bridge level

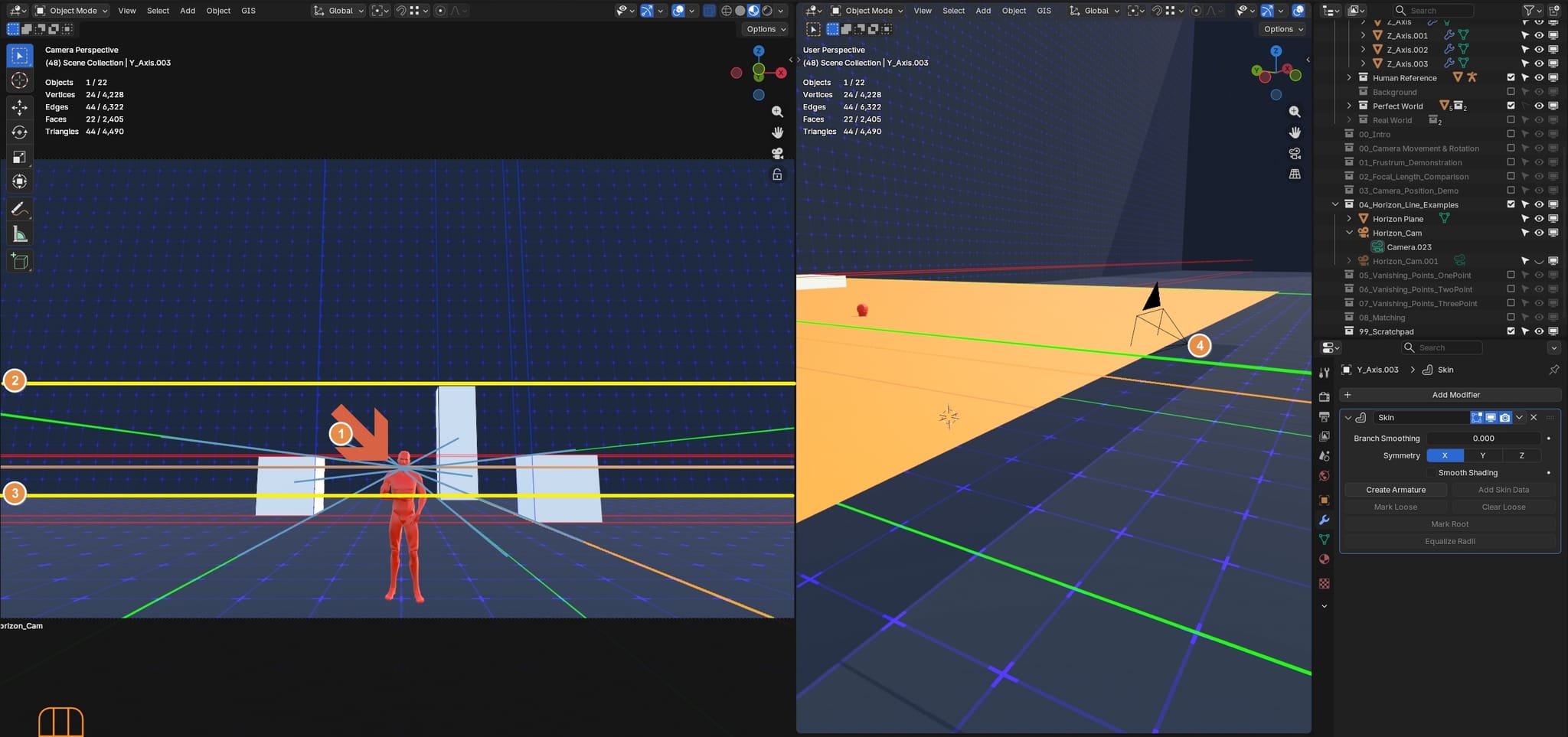

Pitch Angle (Up/Down Tilt)
The horizon line's position in the frame reveals whether the camera is tilted:
-
Horizon line in center of frame → Camera is level (0° pitch)
-
Horizon low in frame → Camera is tilted up (positive pitch)
- Looking up at a building → horizon drops toward bottom of frame
-
Horizon line high in frame → Camera is tilted down (negative pitch)
- Looking down from a balcony → horizon rises toward top of frame Roll Angle (Sideways Tilt)
-
Horizon is diagonal → Camera has roll (Dutch angle)
-
In a level camera (0° roll), the horizon is perfectly horizontal
-
Pitch and yaw keep the horizon horizontal in frame, while roll tilts it diagonally
-
By measuring the angle of the horizon against the frame edge, you can determine exact roll in degrees
Note: A low horizon can mean EITHER "camera is low" OR "camera is tilted up" OR both. You must use other geometric clues (vanishing points, known objects) to separate height from pitch. The same horizon position in a frame can result from different combinations of height and pitch. You need additional geometric constraints to separate them.
All lines in 3D space that are parallel to the ground plane and recede from the camera will converge at points along the horizon line, these are called vanishing points.
Vanishing Points​
In the real world, parallel lines (like train tracks or the edges of a building) never touch. But in a photograph, they appear to converge at a single point in the distance. This is a Vanishing Point.
Every set of parallel lines in 3D space converges to its own vanishing point in 2D. By analyzing where these points are located, we can deduce the orientation of the camera. Different orientations yield different numbers and arrangements of vanishing points.
Types of Perspective​
The number and location of vanishing points tells us about the camera's orientation and its possible position.

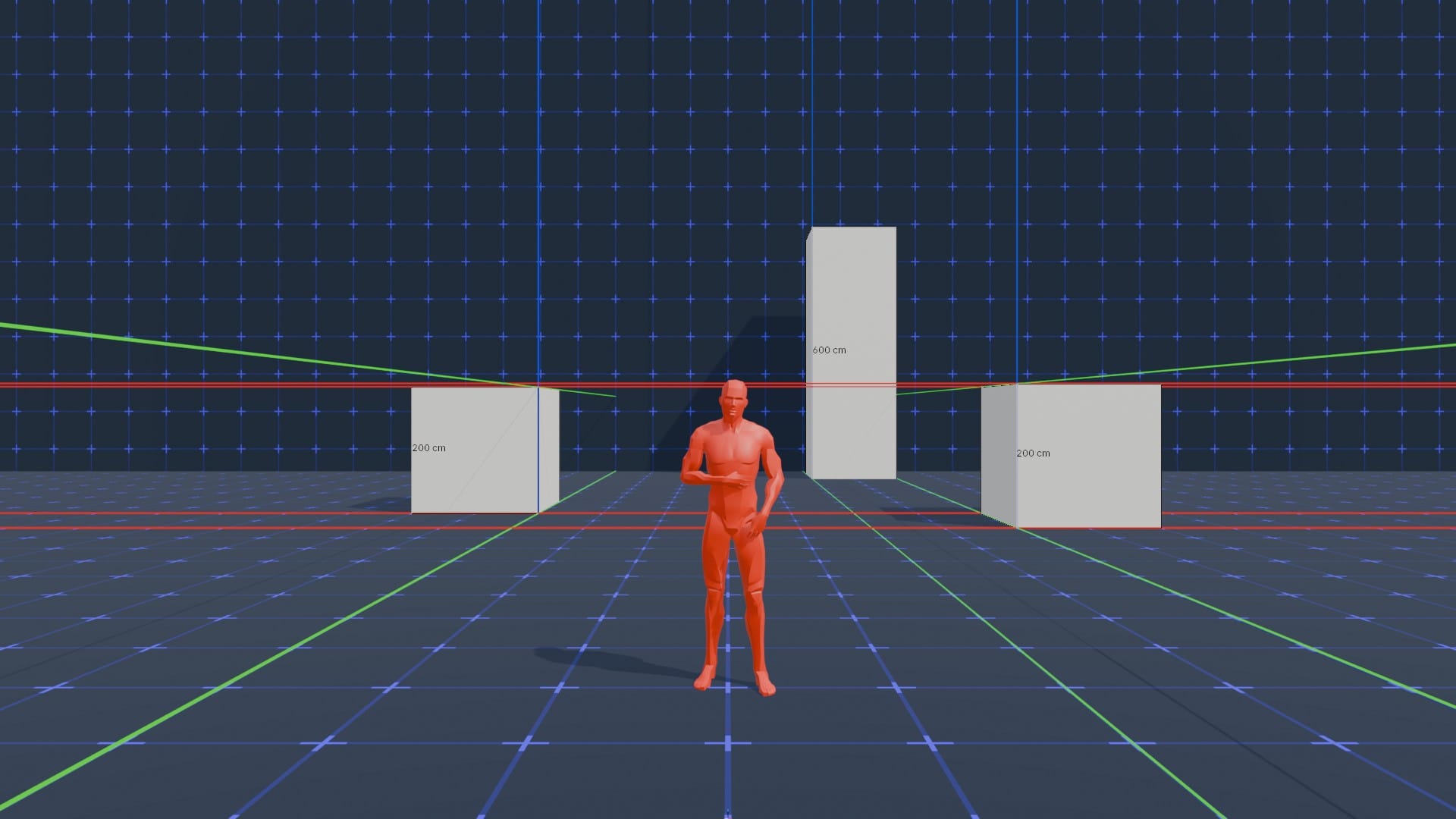

One-Point Perspective (Head-On)​
- Compositional View: You are standing directly in the middle of a street, looking straight down it. Vertical lines stay vertical. Horizontal lines stay horizontal. Only lines moving away from you converge to a single point in the center.
- Vanishing Points: Extend the green Y-axis lines in your minds eye. One vanishing points exist on the horizon line. Both the X-axis (left/right) and Z-axis (up/down) lines remain parallel and do not converge.

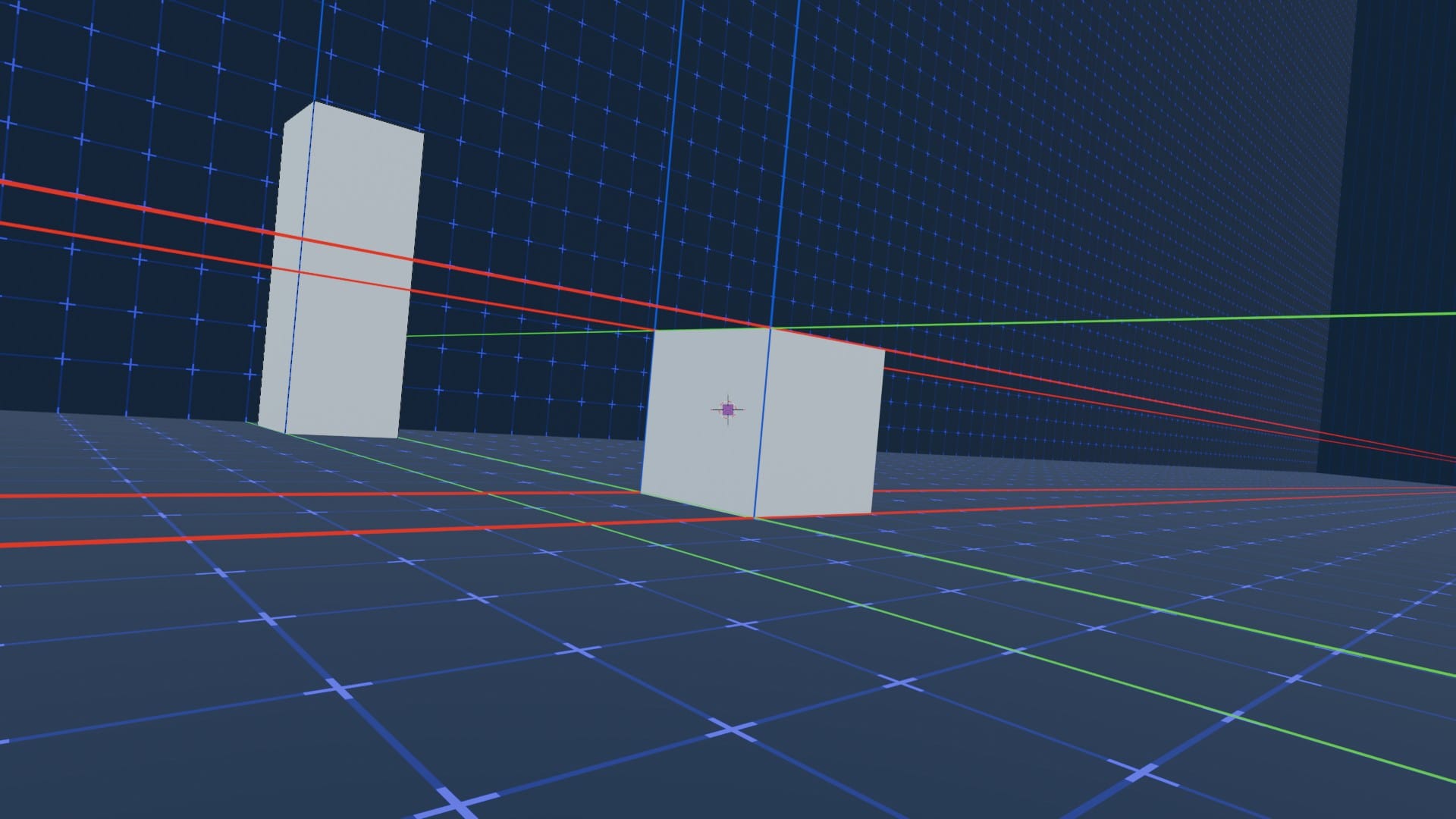

Two-Point Perspective (The Corner View)​
- Compositional View: You are looking at the corner of a building. You can see two sides of the building. The lines of the left wall converge to a point on the left. The lines of the right wall converge to a point on the right. Vertical lines remain perfectly straight up and down.
- Vanishing Points: If you extend the Y and X axis (green & red lines) you'll see that two vanishing points exist on the horizon line, one to the left, one to the right. The Z-axis (vertical) lines remain parallel and do not converge.

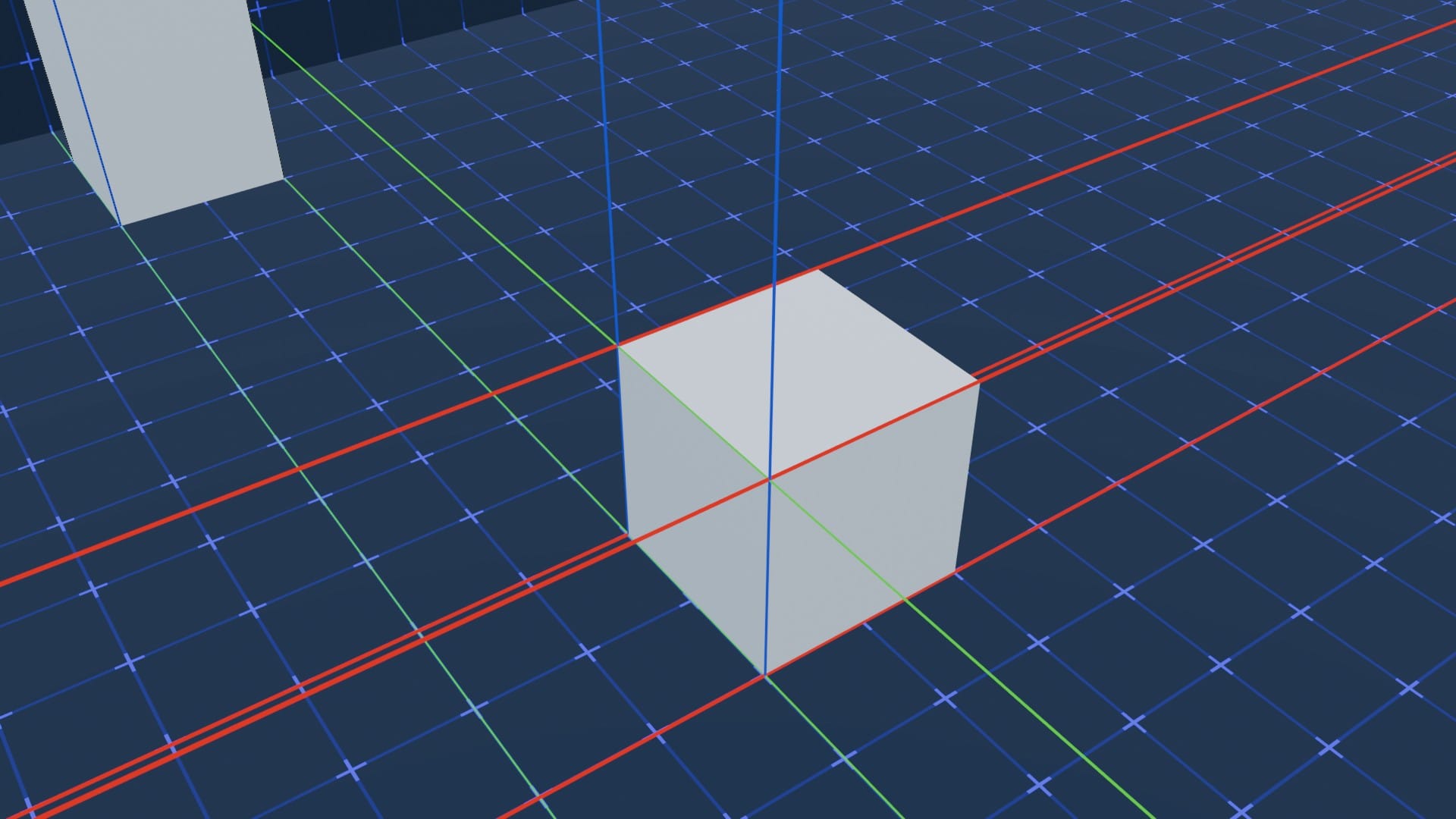

Three-Point Perspective (The High/Low Angle)​
- Compositional View: You are standing at the base of a skyscraper looking up, or on a balcony looking down. Not only do the walls converge to the left and right, but the vertical lines of the building also appear to converge (upward to the sky or downward to the ground).
- Vanishing Points: Three vanishing points exist: two for horizontal convergence and one for vertical convergence. The vertical vanishing point being above the frame = looking up. Below the frame = looking down.
Orthographic View​
In Blender, the viewport is not a static image; it is a dynamic camera that you control. Every time you orbit, pan, or zoom, you are changing your position in virtual space, and therefore changing your perspective. However, Blender offers something the real world does not: The ability to change the rules of perspective itself, and two distinct ways to view the world.
Perspective View​
Everything we have been discussing. This view mimics how cameras and human eyes work. We perceive the world through a frustum (pyramid shape). Parallel lines appear to converge at a vanishing point.

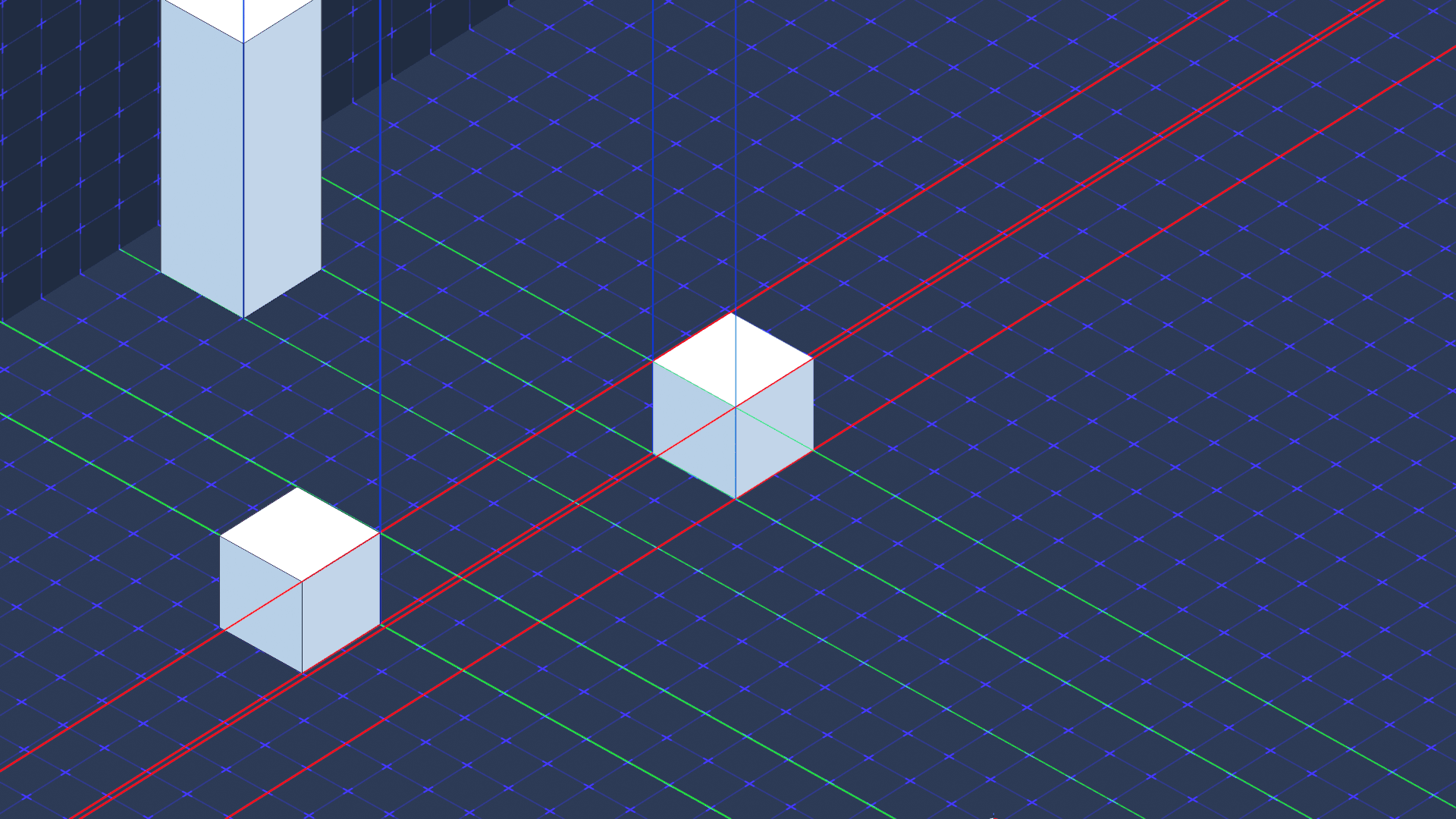

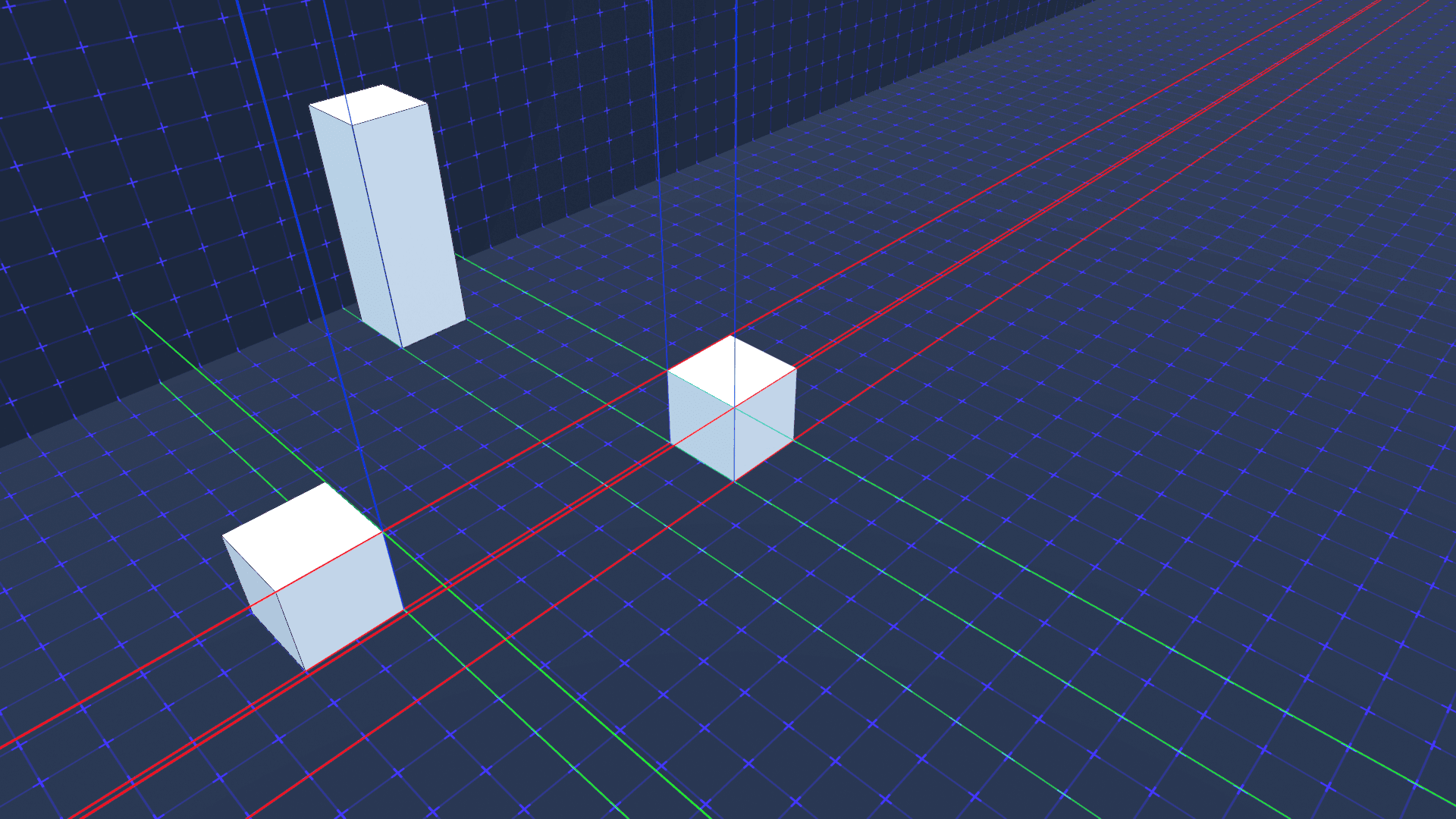

Orthographic View​
Functionally, Orthographic is the negation of human perspective. The view volume is a rectangular prism (cuboid), not a pyramid. Parallel lines remain parallel forever; they never converge. An object 1 meter away looks the same size as an object 100 meters away. It creates a "God's Eye" view that removes the distortion of the observer. It prioritizes dimensional truth over perceptual truth. Useful when modeling to scale, aligning objects, measuring distances, or when you need to verify that two objects are truly parallel, or that something is exactly vertical. Perspective view can distort your vision, where orthographic view tells the "truth". Some people swear by modeling in orthographic view.
Shortcut: Toggle between Perspective and Orthographic views by pressing
Numpad 5.
Common Pitfalls & Limitations​
Perspective analysis is a powerful tool, but it has limits. Real-world photography rarely produces textbook examples. Understanding when and why the geometric rules break down is as important as understanding the rules themselves.
The Spectrum of Perspective​
Perspective types exist on a continuum, not as discrete categories. There is a transition between one-point, two-point, and three-point perspectives based on camera orientation.: A truly perfect one-point perspective requires the camera to be exactly aligned with a set of parallel lines, which is rare outside of controlled studio settings. As you rotate away from head-on alignment, the second vanishing point moves from infinity toward the frame and a Second or a Third VP might be far off-frame but they technically exist.
The practical takeaway: Don't waste to much time debating whether an image is "one-point or two-point." Instead, look for vanishing points that matter for your analysis."
Lens Distortion​
Traditional perspective assumes an ideal pinhole camera where straight lines in 3D remain straight in 2D and perspective follows projective geometry. Real lenses violate this assumption. because they usualy introduce optical distortion that bends straight lines, especially near frame edges.
Types of Distortion​
-
Barrel Distortion (Wide-Angle Lenses): Straight lines bow outward, especially at frame edges
-
Pincushion Distortion (Telephoto Lenses): Straight lines bow inward toward frame center
-
Fisheye Lenses (Extreme Wide-Angle): Severe barrel distortion creates circular or spherical appearance
-
Extreme Focal Lengths: Ultra-Wide Lenses (smaller than 20mm), Super-Telephoto (larger than 200mm)
Aerial Photography & Extreme Altitudes​
When the camera is significantly elevated (hundreds of meters or more), traditional horizon analysis breaks down because the visible horizon no longer represents the camera's eye level. The curvature of the Earth and atmospheric effects distort the horizon line, making it an unreliable reference for pitch and height.
Narrow Fields of View & Partial Geometry​
Sometimes you have an image that shows so little of the scene that geometric analysis is ambiguous:
- Tight crops with no visible horizon
- Close-ups where vanishing points are far outside the frame
- Geometric featureless environments (blank walls, empty sky, uniform terrain)
Summary​
Perspective is not just a visual effect; it is the mathematical rulebook of how 3D space is translated into a 2D image. Everything you see is a 2D illusion. Your job is to make that illusion geometrically accurate and spatially verifiable.
- Position determines perspective geometry. Focal length only determines how much of that geometry you see.
- The horizon line is the pitch = 0° axis. It's not just compositional; it's a measurable camera parameter.
- Perspective types indicate camera orientation. Read vanishing points to deduce pitch, roll, and yaw.
- Perspective view mimics cameras, used in reconstruction.
- Orthographic view removes distortion, useful for construction.
Perspective analysis is a tool, not magic.
It works best when:
- The image provides rich geometric information
- The lens approximates an ideal pinhole camera
- You have reasonable constraints (height, scale, angle)
It fails when:
- Optical physics violates geometric assumptions
- The scene lacks spatial structure
- The viewpoint is too extreme
The trick is to recognize which situation you're in, extract what truth you can, and honestly communicate the limits of what the geometry can tell you.
Next optional step​
If you read this page and want to see (and test) how this knowledge applies to the technique called Camera matching, you can deviate from the linear structure and head over to the dedicated Cameraatching page. Matching a camera will unlock some new possibilities, such as:
- Modeling from camera: Extract or reconstruct 3D objects from an image within a matched camera.
- Photomatching: Verify an existing 3D reconstruction against original imagery
- Embedding or placing 3D models 'into' or 'over' a photograph or video footage
